Concealed lighting profile
IB-10 LED
Wide evening interior showing a white IB-10 coffered ceiling grid with concealed warm LED lighting reflecting softly above the beams while the light source remains hidden.
Light in the detail
A hidden source. A continuous ceiling wash.
The geometry of IB-10 remains clearly visible while reflected light softens the ceiling above the grid. The result adds an ambient layer without putting the LED strip itself on display.
Fine ledges create a detailed sequence of shadows. The final effect depends on strip position, available setback, the ceiling surface and the selected lighting controls.
Compare lighting approaches →Read the IB-10 lighting guide →LED profile shape
See the shape that conceals the light.

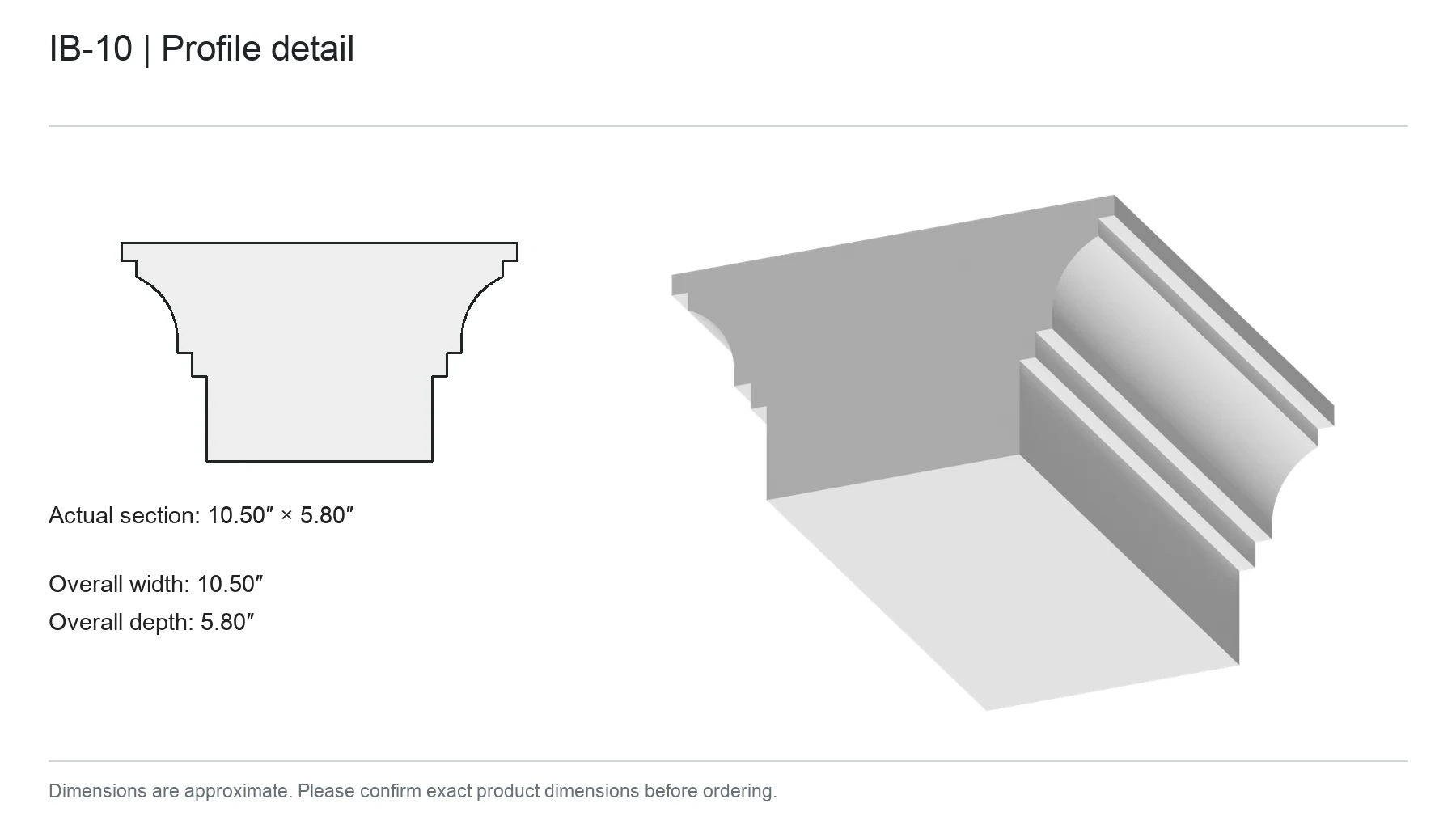

The outline and 3D cut-end view show the actual IB-10 geometry. Read them alongside the room image to understand the visible face, moulded transitions and the space that must be coordinated with the selected LED system.
Technical cross-section
IB-10 LED dimensioned cross-section.
The dimensioned drawing shows the width, height and moulded shape used for this LED concept. Lighting components, clearances and service access must be confirmed separately with the manufacturers and the project electrician.
Dimensions are nominal and approximate. Confirm the current profile, dimensions and all lighting details before ordering, cutting or installation.
Select the drawing to enlarge it or open the matching profile PDF.
Plan before installation
Coordinate the grid and the lighting from the start.
- 01
Light position
Decide where the source must remain hidden and where the reflected light should appear.
- 02
Clearances and components
Confirm space for the strip, channel, diffuser, driver and heat management according to the component manufacturers.
- 03
Wiring and access
Plan a clean wiring path and suitable access to components that may require service.
- 04
Separate controls
Consider controlling ambient light separately from spotlights or decorative fixtures.
All electrical work must comply with applicable local codes, laws and regulations and be performed by a licensed electrical professional.
Plan IB-10 with LED
Show us the room and the atmosphere you want.
Include approximate dimensions, ceiling height, project city and the lighting types you are considering.
